Hardwired tracker

Discreet tracking, dramatic ROI

Not comfortable with the OBD-II device? Need a more discrete and tamper-proof installation?

The One Step Custom Features Hardwired GPS Tracker can work with any power source—no matter the year of the vehicle, and there are multiple places in the vehicle where it can be installed.

Chat with us Have questions? Talk to a specialist
12%

Reduction in man-hours

9%

Reduction in fuel costs

38%

Reduction in number of accidents

25%

reduction in insurance premiums

57%

Reduction in citations

Surveyed Averages

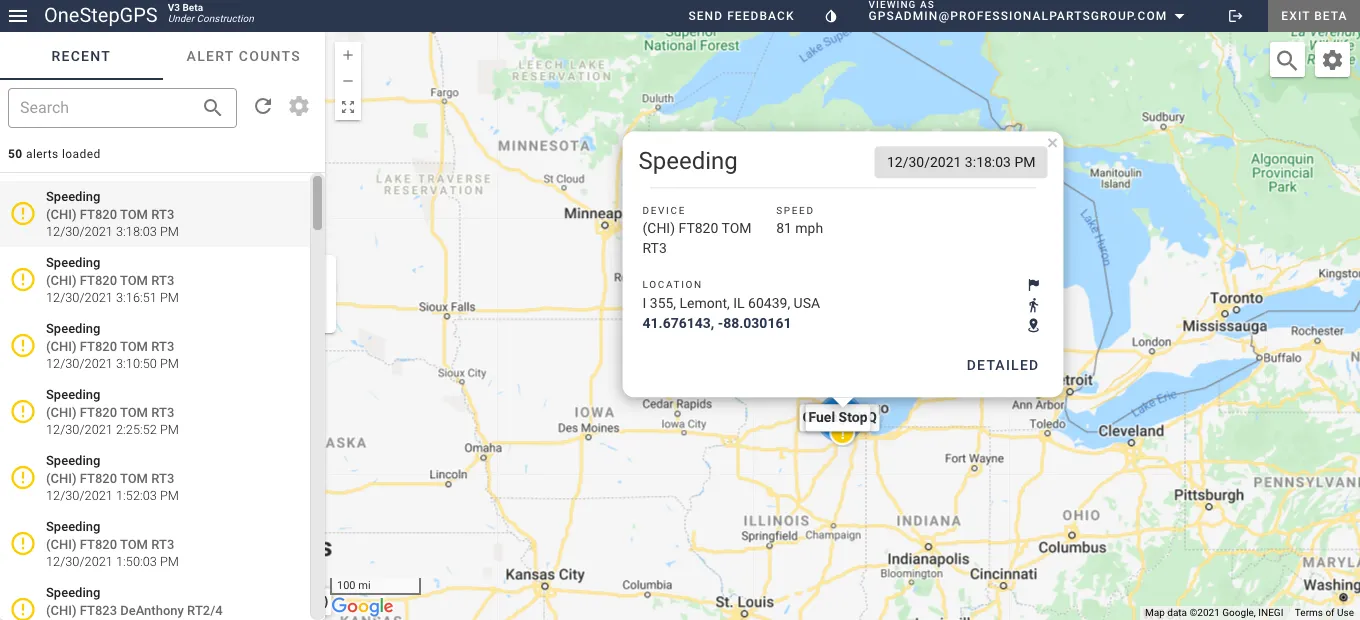

Robust real-time reports

Our up-to-the-minute reports are the foundation that allows you to reduce fleet accidents, off-limits use, poor driving habits, protect company property and transform your fleet operations.

Features

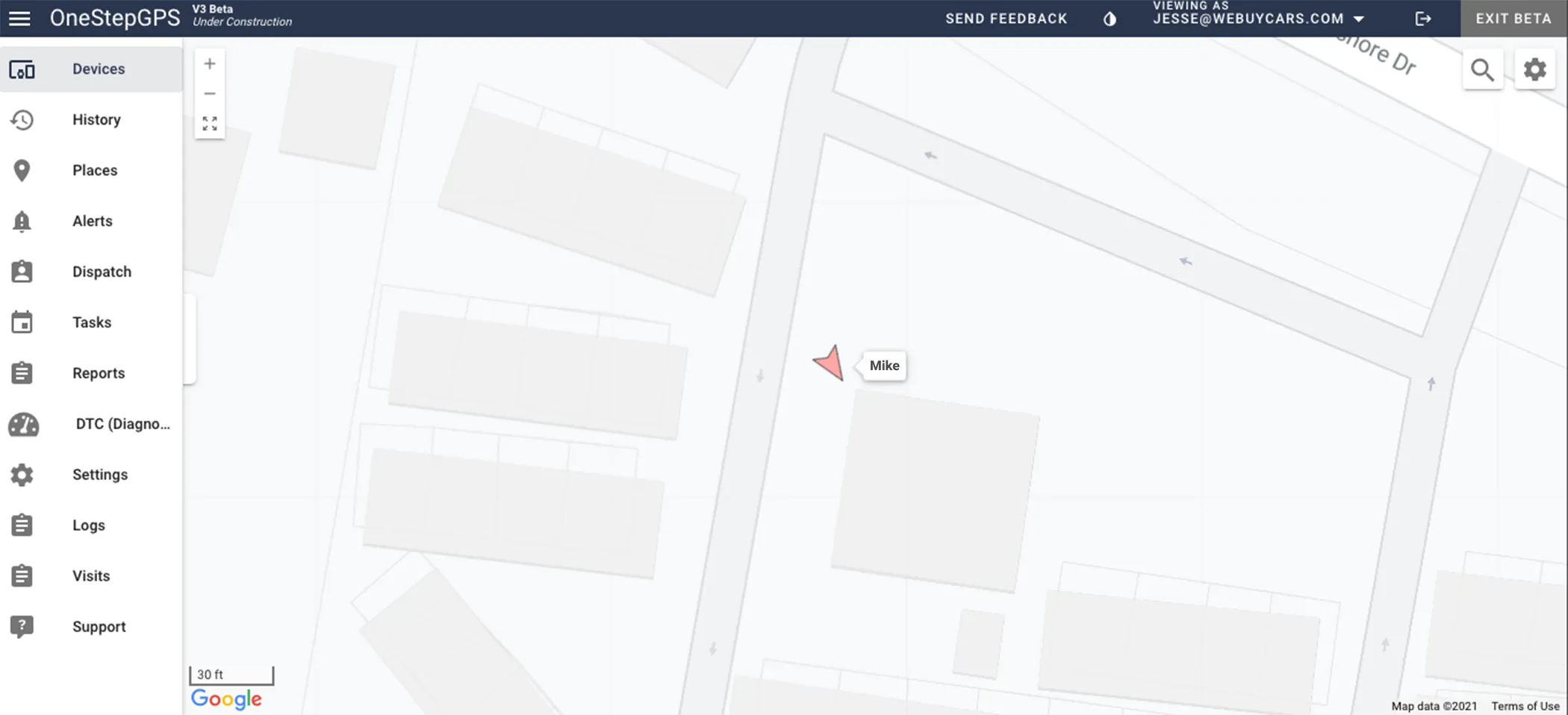

Real-time tracking 24 hours a day, 7 days a week
View all vehicles on one screen.

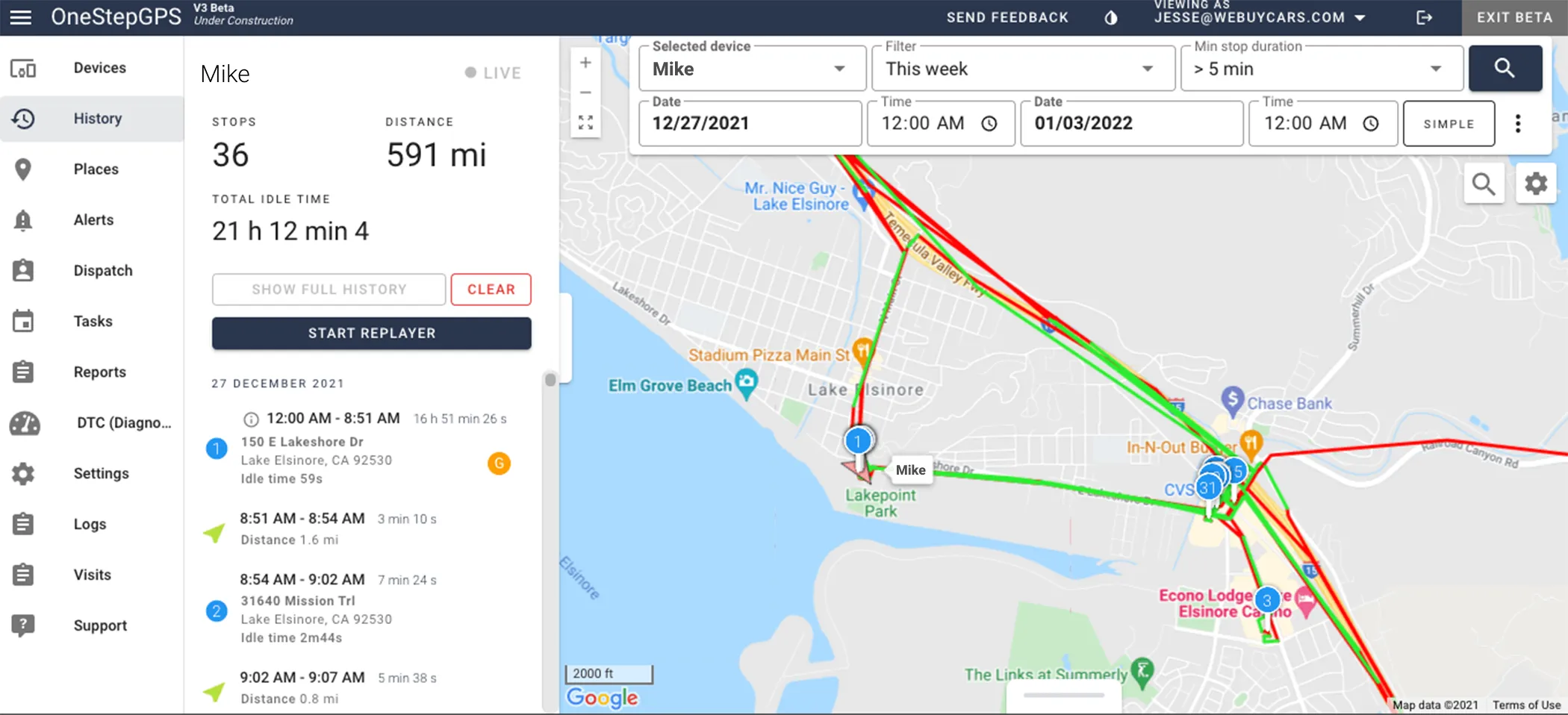

See all routes, stops, addresses and durations for up to 3 years
No need to pay extra to see data in the last three years.
Monitor unsafe driving habits
Track speeding, braking, acceleration and other costly bad habits.
Have accurate GPS data to better control what is going on
Pinpoint driver's exact location for real-time decisions within seconds
Excessive idling or prolonged stop alerts
Reduce unnecessary stop times, cut down on fuel expenses, and get more done.

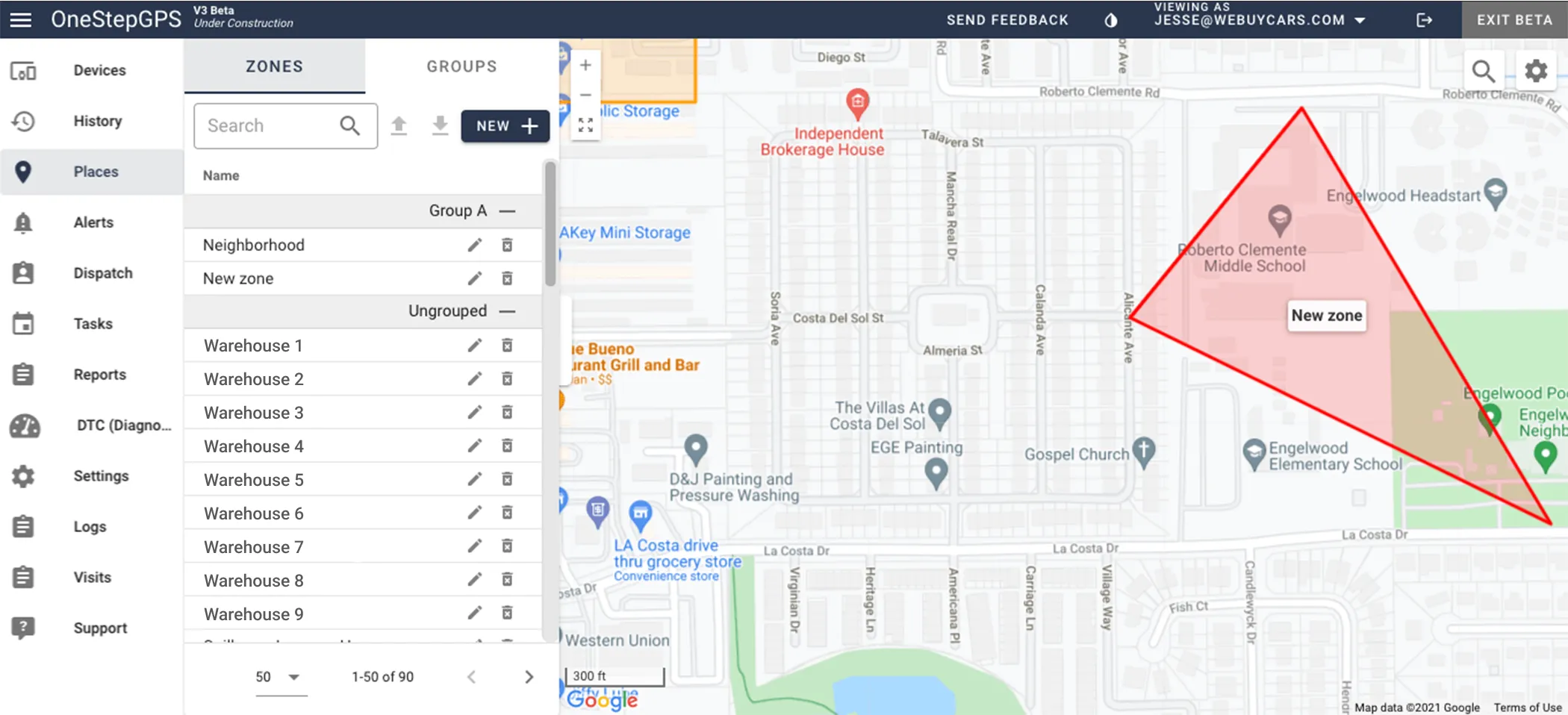

Geofence and after hours driving alerts
Reduce unauthorized driving and help prevent vehicle thefts.
Chat with us Request a free demo
Mike A review
Mike A.
Virginia, USA
"One Step paid for its self on the first day in service. It is a great tool to keep up with our product, service to the customer and make sure that our drivers are following speed limits"

Driver Identification

By tracking driver identification, you can monitor driver behavior, such as speeding, harsh braking, and acceleration, and ensure that they are adhering to company policies and safety regulations. This information can be used to provide feedback to drivers and improve their driving skills, which in turn can lead to reduced fuel costs, fewer accidents, and less wear and tear on your vehicles.

smiling truck driver
finger on engine start button

Starter Disable

The starter disable feature prevents theft and unauthorized use of vehicles. Activating it during a theft prevents the thief from driving the vehicle and allows real-time tracking for quick recovery with minimal damage.

Power Take Off

The Power Take Off (PTO) feature detects when equipment is in use and logs activity in the GPS tracking software. This allows you to monitor usage, identify patterns or trends, and prevent unauthorized use. Alerts can be set up for any unauthorized activity, allowing you to quickly identify theft or misuse and take action to prevent further loss or damage.

tow truck
refrigerated truck

Temperature Sensors

A hardwired GPS tracker with temperature sensors is a powerful tool for businesses that need to transport temperature-sensitive goods. It can help you ensure the quality and safety of your cargo, maintain compliance with regulatory requirements, and improve your operational efficiency.

One Step GPS’ intuitive software makes management easy

One Step GPS’ platform is powerful and built for you. Learn the software rapidly on your own or with the help of our industry-leading support. For simple applications, our software can be learned in as little as 1 hour. In most cases, brand new users can familiarize themselves with the software in less than a day.

Our platform places all of the information you need to transform fleet operations, safety and success at your fingertips. See real-time location and direction, vehicle speed, calculated odometer, engine on/off, engine idle, engine hours, altitude, vehicle/equipment voltage plus there are optional add-ons available.

Woody P review
Pundmann F.
Missouri, USA
"What I appreciated about One Step GPS was the approach they took to making sure my company had exactly what we needed to suit our purposes, and not a lot of function we'd never use. The product arrived when I was told it would, it does everything I was told it would. I am extremely grateful One Step GPS was recommended to us, we're very happy."
Talk to an expert today

Hardwired Tracker FAQs

What's the difference between hardwired trackers and plug-in trackers?

Hardwired trackers are integrated directly into the vehicle's electrical system, a process that requires a professional mechanic or someone with low-voltage experience. This permanent installation offers enhanced security as the unit is discreetly concealed, making it difficult to locate and tamper with.

Plug-in GPS trackers are designed for easy installation and removal, connecting directly to the vehicle’s OBD-II port without needing professional installation. While this design ensures flexibility and convenience, it also requires additional measures to conceal the unit, protecting it from tampering or theft. Unlike hardwired units, plug-in trackers provide detailed insights into engine performance and other diagnostic data due to their direct connection to the vehicle’s diagnostics port.

The choice between hardwired and plug-in GPS fleet trackers hinges on the balance between security and convenience. Hardwired units are suited for those seeking a more permanent and secure solution, while plug-in units cater to users who value flexibility, ease of installation, and detailed vehicle diagnostics.

What happens if someone disconnects the hardwired GPS unit?

To put it simply, you will know as soon as someone removes the device.

We offer many different ways to send alerts:

  • Email
  • Text messages
  • App notifications
  • Reports

You can also send the information to as many people/users as needed to ensure your trackers will always be online.

Additionally, the tracker has a 10-hour backup battery so if the tracker is still in the vehicle when disconnected you can still track and recover the vehicle with ease. This feature also works if someone disconnects the battery and tows the vehicle."

How long does it take to install a hardwired GPS device?

Depending on the vehicle and familiarity, it takes anywhere from 15 minutes to an hour. To install the hardwired unit you need to only connect three wires. Red gets connected to a wire with constant power, Black gets connected to a ground, and White gets connected to a wire that only gets power when the vehicle is turned on.

Is it compatible with all vehicles?

Our hardwired GPS tracker is compatible with any vehicle, it just requires an understanding of low voltage electrical and how to properly install the device. If you have any questions our US-based specialist support team is available to assist you!

How accurate is the data?

Our hardwired GPS tracker delivers superior GPS accuracy, ~2.0m CEP Open Sky.

In simple terms this means that, in good weather conditions, your GPS will report vehicles within several feet of their actual physical location. Our GPS fleet trackers deliver superior accuracy so you can make confident decisions based on the data you’re receiving.

With GPS tracking updates as often as every 2-30 seconds, you can now have a complete, real-time view of every vehicle on the road.

What engine data is reported with hardwired gps?

Our hardwired GPS tracker captures valuable data that can help manage fleet fuel costs, support fleet maintenance programs and keep your drivers safe:

  • Ignition on and off
  • Idle time
  • Voltage reading
  • Vehicle speed
  • Location

Can I install the GPS tracker myself, or do I need a professional?

If you have low-voltage experience and are comfortable working on your vehicles, it's definitely possible to install the hardwired GPS tracker yourself. If you have further questions on this, schedule a call with one of our US-based specialists to discuss the matter.

Can I move the tracker to another vehicle if needed?

Yes, you can remove and reinstall the hardwired GPS tracker; we have simple instructions available for moving the device from one vehicle to another.

Can I monitor driver behavior, such as speeding or harsh braking, with the tracker?

Yes! The hardwired GPS tracker provides real-time reports on driver behavior including speeding, harsh braking, accident detection, vehicle idle, engine on and off and more.

Will the installation of the tracker void my vehicle's warranty?

Installing a GPS tracker in your vehicle could potentially void the warranty, as is the case with many other aftermarket devices. Be sure to check your vehicle’s warranty to understand your rights, and ensure that your GPS device is properly installed in order to reduce the likelihood of voiding the warranty.

Why should I choose a hardwired tracking device over a plug-and-play or battery-operated unit?

The major benefit of a hardwired GPS tracker is that it's more discreet, more difficult to find and more difficult to remove or tamper with. While the other types can be hidden, if theft or tampering is a primary concern for you consider using a hardwired GPS tracker instead of a plug-in since it can be hidden virtually anywhere three feet of your electrical connection which makes it a much harder target to find.

Where should I install my tracker?

We recommend installing the GPS tracker under the dash, this is the most convenient and effective placement of the unit. We will provide you with full installation instructions and our US-based specilists will be available to help you with any questions or problems that arise in the installation process.

What's the difference between hardwired trackers and plug-in trackers?

Hardwired trackers are integrated directly into the vehicle's electrical system, a process that requires a professional mechanic or someone with low-voltage experience. This permanent installation offers enhanced security as the unit is discreetly concealed, making it difficult to locate and tamper with.

Plug-in GPS trackers are designed for easy installation and removal, connecting directly to the vehicle’s OBD-II port without needing professional installation. While this design ensures flexibility and convenience, it also requires additional measures to conceal the unit, protecting it from tampering or theft. Unlike hardwired units, plug-in trackers provide detailed insights into engine performance and other diagnostic data due to their direct connection to the vehicle’s diagnostics port.

The choice between hardwired and plug-in GPS fleet trackers hinges on the balance between security and convenience. Hardwired units are suited for those seeking a more permanent and secure solution, while plug-in units cater to users who value flexibility, ease of installation, and detailed vehicle diagnostics.

What happens if someone disconnects the hardwired GPS unit?

To put it simply, you will know as soon as someone removes the device.

We offer many different ways to send alerts:

  • Email
  • Text messages
  • App notifications
  • Reports

You can also send the information to as many people/users as needed to ensure your trackers will always be online.

Additionally, the tracker has a 10-hour backup battery so if the tracker is still in the vehicle when disconnected you can still track and recover the vehicle with ease. This feature also works if someone disconnects the battery and tows the vehicle."

How long does it take to install a hardwired GPS device?

Depending on the vehicle and familiarity, it takes anywhere from 15 minutes to an hour. To install the hardwired unit you need to only connect three wires. Red gets connected to a wire with constant power, Black gets connected to a ground, and White gets connected to a wire that only gets power when the vehicle is turned on.

Is it compatible with all vehicles?

Our hardwired GPS tracker is compatible with any vehicle, it just requires an understanding of low voltage electrical and how to properly install the device. If you have any questions our US-based specialist support team is available to assist you!

How accurate is the data?

Our hardwired GPS tracker delivers superior GPS accuracy, ~2.0m CEP Open Sky.

In simple terms this means that, in good weather conditions, your GPS will report vehicles within several feet of their actual physical location. Our GPS fleet trackers deliver superior accuracy so you can make confident decisions based on the data you’re receiving.

With GPS tracking updates as often as every 2-30 seconds, you can now have a complete, real-time view of every vehicle on the road.

What engine data is reported with hardwired gps?

Our hardwired GPS tracker captures valuable data that can help manage fleet fuel costs, support fleet maintenance programs and keep your drivers safe:

  • Ignition on and off
  • Idle time
  • Voltage reading
  • Vehicle speed
  • Location
Can I install the GPS tracker myself, or do I need a professional?

If you have low-voltage experience and are comfortable working on your vehicles it's definitely possible to install the hardwired GPS tracker yourself. If you have further questions on this, schedule a call with one of our US-based specialists to discuss the matter.

Can I move the tracker to another vehicle if needed?

Yes, you can remove and reinstall the hardwired GPS tracker; we have simple instructions available for moving the device from one vehicle to another.

Can I monitor driver behavior, such as speeding or harsh braking, with the tracker?

Yes! The hardwired GPS tracker provides real-time reports on driver behavior including speeding, harsh braking, accident detection, vehicle idle, engine on and off and more.

Will the installation of the tracker void my vehicle's warranty?

Installing a GPS tracker in your vehicle could potentially void the warranty, as is the case with many other aftermarket devices. Be sure to check your vehicle’s warranty to understand your rights, and ensure that your GPS device is properly installed in order to reduce the likelihood of voiding the warranty.

Why should I choose a hardwired tracking device over a plug-and-play or battery-operated unit?

The major benefit of a hardwired GPS tracker is that it's more discreet, more difficult to find and more difficult to remove or tamper with. While the other types can be hidden, if theft or tampering is a primary concern for you consider using a hardwired GPS tracker instead of a plug-in since it can be hidden virtually anywhere three feet of your electrical connection which makes it a much harder target to find.

Where should I install my tracker?

We recommend installing the GPS tracker under the dash, this is the most convenient and effective placement of the unit. We will provide you with full installation instructions and our US-based specilists will be available to help you with any questions or problems that arise in the installation process.

GPS options at a glance

Not sure if you need a plug-in solution or a hardwired solution?
While both options offer superior tracking and reporting capabilities, this chart highlights the key differences so you can make the best choice for your fleet’s needs.

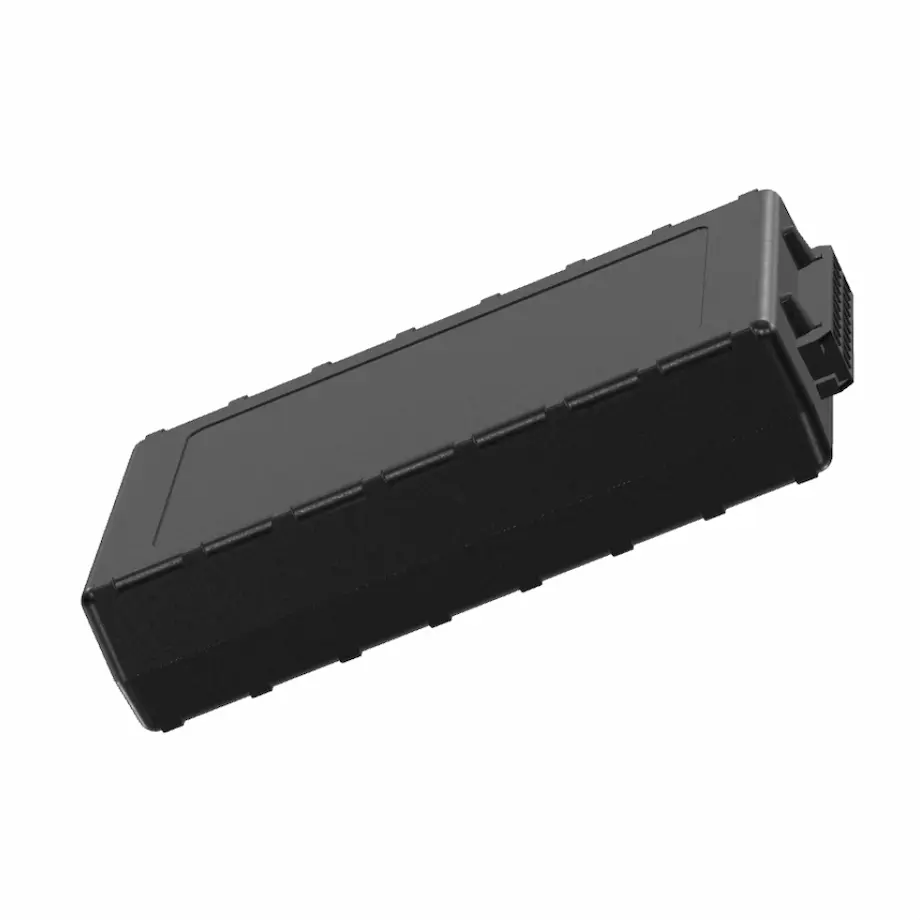

hardwired tracker
Hardwired unit

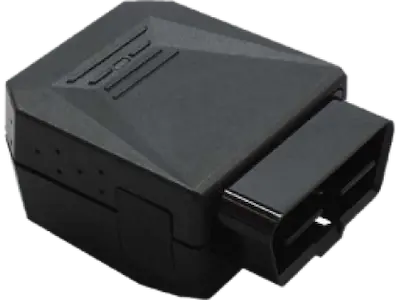

 plug in tracker
Plug-in unit
Dimensions 3.7” x 2.0” x 0.8” 1.88” x 2.50” x 1.14”
GPS accuracy Superior accuracy, ~2.5m CEP Open Sky Superior accuracy, ~2.5m CEP Open Sky
Alerts Dozens of state-of-the-art alerts Dozens of state-of-the-art alerts
Installation Requires professional installation or low voltage experience Easy, less than 1 minute, can be done by anyone
Tamper-proof Very difficult to remove, hardwired into vehicle electrical Easy to remove, extra cables required to hide device, automatic tamper alerts
Cell technology LTE CAT-M1, GSM/GPRS, default 2-30 second update speed while on, 30 min while off LTE CAT-M1, GSM/GPRS, default 2-30 second update speed while on, 30 min while off
Warranty Lifetime warranty (Read our warranty) Lifetime warranty (Read our warranty)
Battery draw Typical 50mA @ 12V (GPS tracking and cell idle) Typical 60 mA @ 12V (active tracking with GPS and cell enabled)
Operating temp. -30° to +60° C (connected to primary power) -30° to +60° C (connected to primary power)
Voltage range 9-30 VDC (start-up, operating) 9-30 VDC (start-up, operating)
Power supply 24/7 direct from vehicle 24/7 direct from vehicle
Battery backup 12 hour backup battery life 2 hour backup battery life
Accelerometer Triple-axis, impact, motion sense Triple-axis, impact, motion sense
Gyroscope Triple-axis Triple-axis
>
