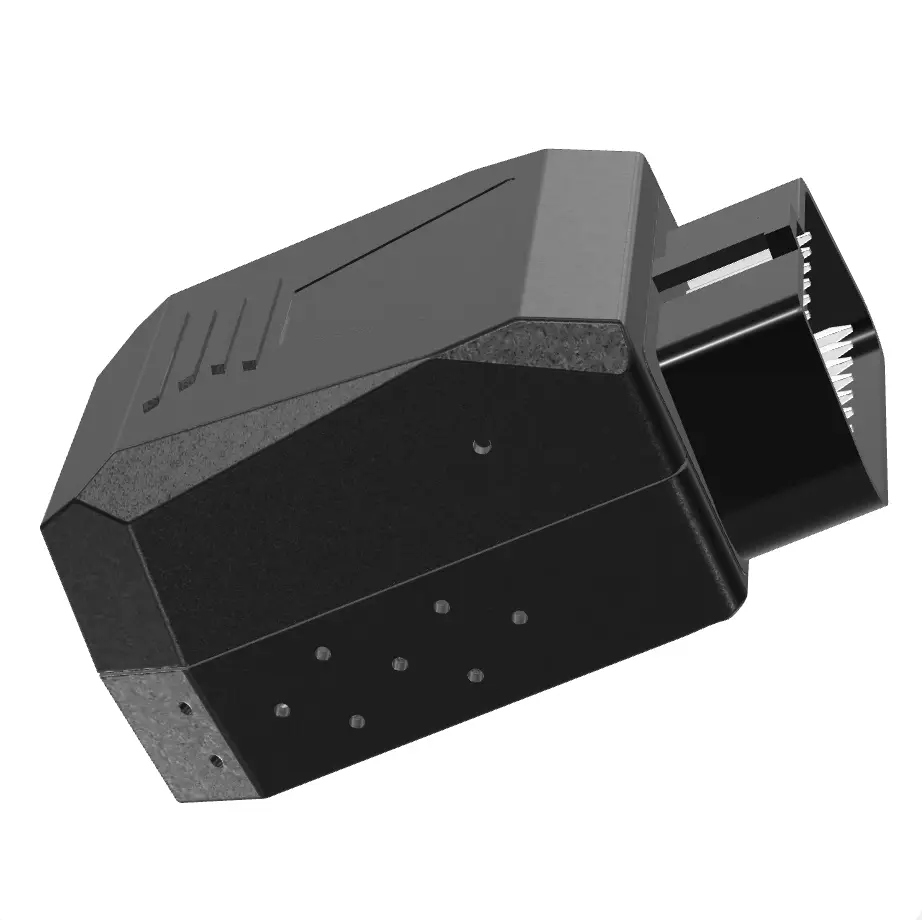

Plug-in GPS Tracker

Plug-in GPS fleet trackers are devices that are very easy to install and remove, while hardwired GPS fleet trackers are more permanently integrated into the vehicle's electrical system. Anyone can install a plug-in GPS tracker, it’s like charging a cellphone. Low Voltage experience or a professional mechanic is required to install hardwired GPS trackers, and they are difficult to remove.

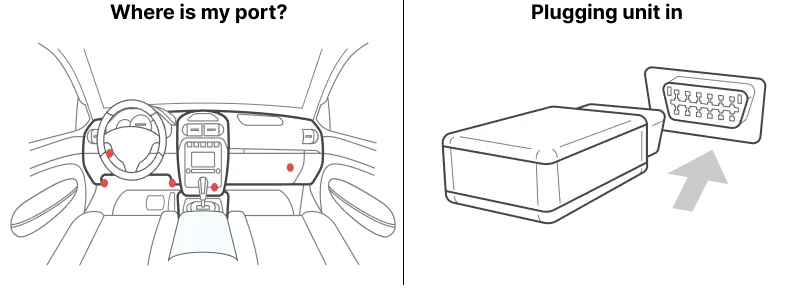

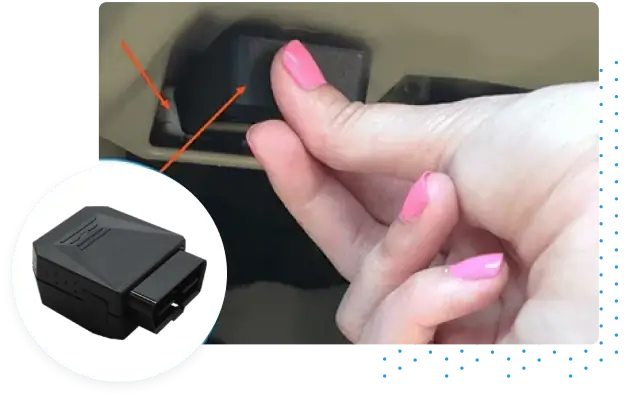

To install your Plug-in tracker, simply locate the OBD-II port in your vehicle and plug it in with the device in the proper orientation:

On-board diagnostics (OBD-II) ports are standard in all passenger & light commercial vehicles built after 1996. Additionally, most medium duty trucks have them as well.

While heavy-duty trucks and semis tend not to have OBD-II ports, we have adapters for all vehicle types (J1939 Type I & II, J1708, OBDII HD, RP1226, etc) so no matter your needs we can build a solution that works for your fleet.

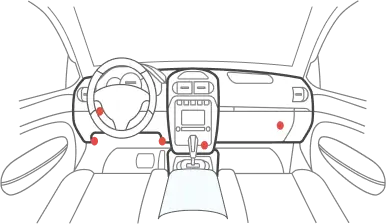

To locate the OBD-II port in your vehicle look in one of these common places:

To hide the plug-in tracker you will need a screwdriver and an extender cable.
The plug-in tracker can be hidden using these steps:

1. Using your screwdriver, depress the tabs securing the vehicle’s OBD-II port.
2. Plug the Y Cable into the vehicle’s OBD-II port.
3. Plug the GPS unit to the short side of the Y Cable.
4. Push the original OBD-II port and the Plug-in GPS unit back into the dash.
5. Secure the long end of the extender to the vehicle’s dedicated OBD-II mount.

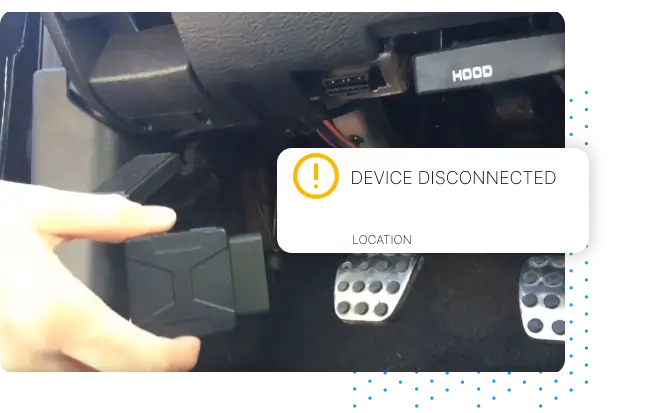

To put it simply, you will know as soon as someone removes the device.

We offer many different ways to send alerts:

• Email
• Text messages
• App notifications
• Reports

You can also send the information to as many people/users as needed to ensure your trackers will always be online.

It takes less than 1 minute to install once you’ve located the OBD-II ports on your vehicle.

If you are hiding the unit using an extender cable the whole process can take 10 minutes to complete once you’ve done it a couple of times.

The plug-in GPS tracker is compatible with any vehicle that has an OBD-II port.

All passenger and light-duty vehicles made after 1997 have OBD-II ports. Many medium-duty vehicles have them as well.

For any vehicle that doesn’t have a built in OBD-II port such as heavy-duty and semi trucks, we have adapters to fit with any vehicle (J1939 Type I & II, J1708, OBDII HD, RP1226, etc).

The plug-in GPS tracker delivers superior GPS accuracy and dozens of powerful reports to transform ever aspect of your operations:

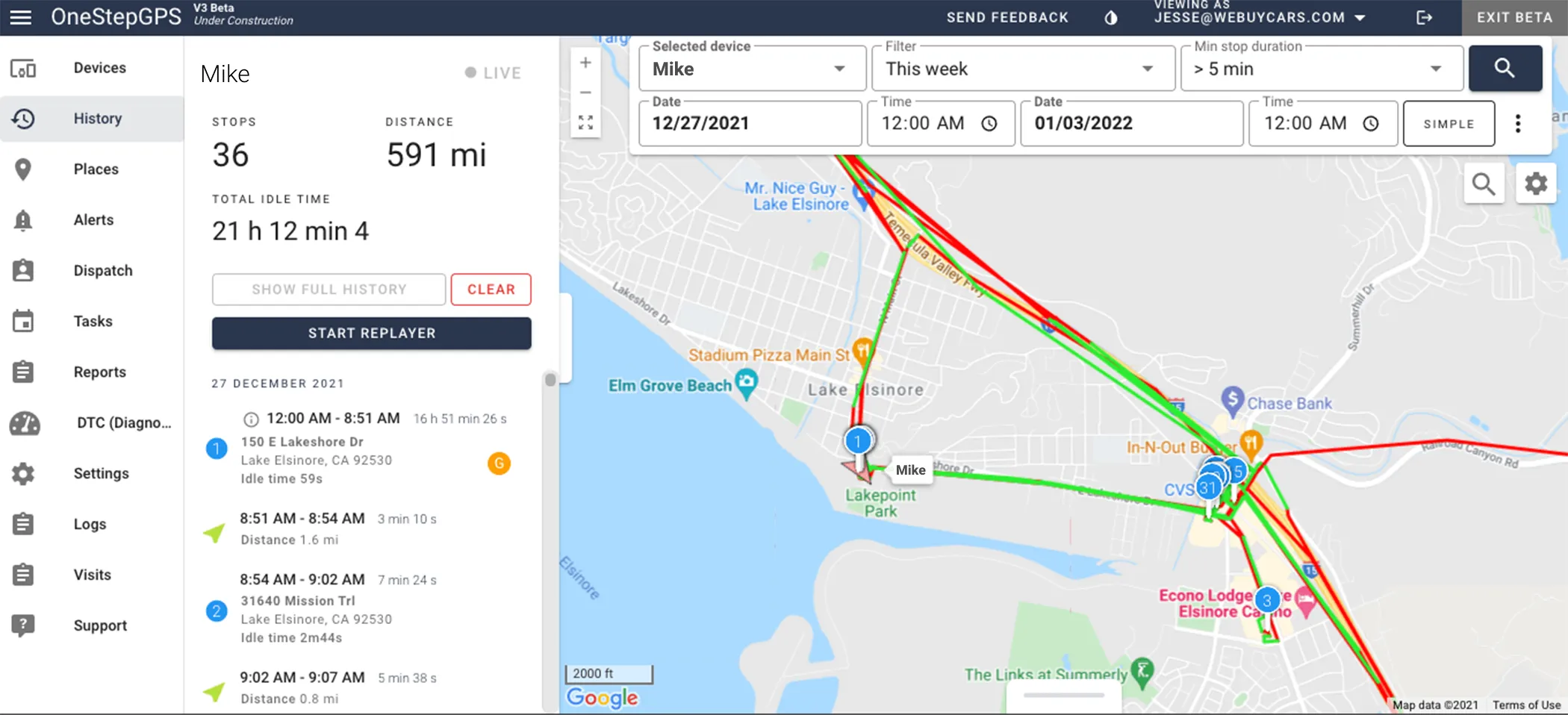

• See all routes, stops and addresses

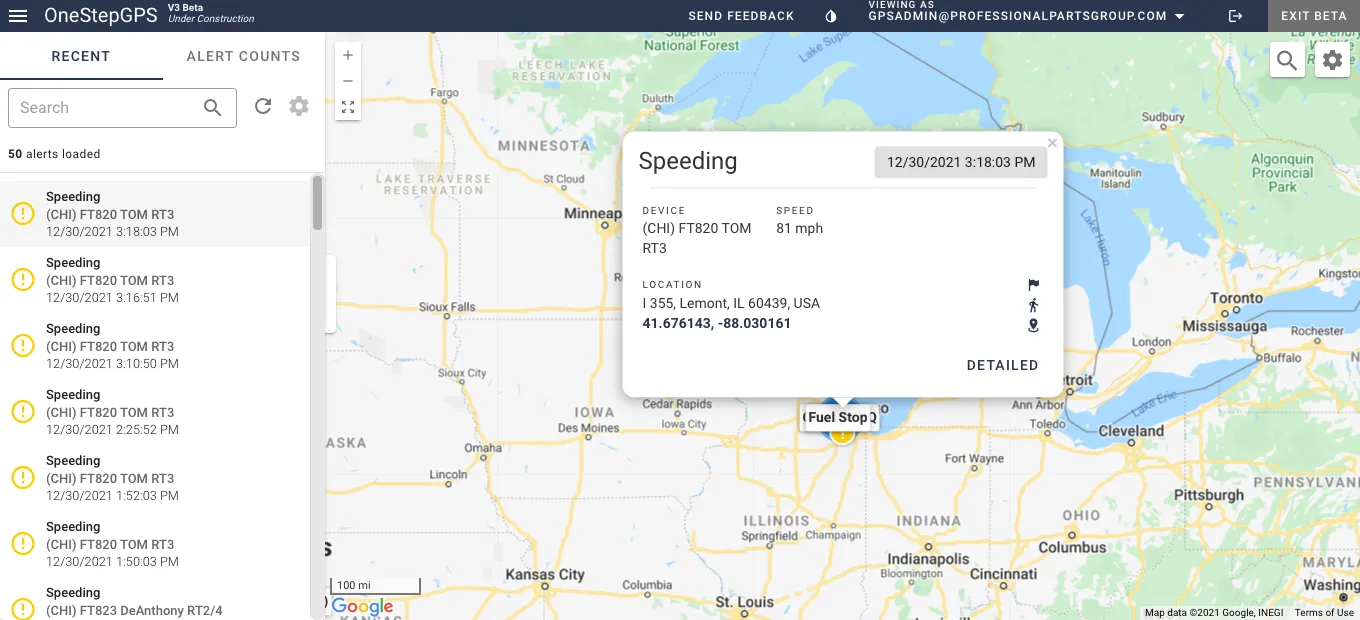

• Speeding
• Harsh braking
• Hard acceleration
• Real-time location (up to 2-30 seconds)

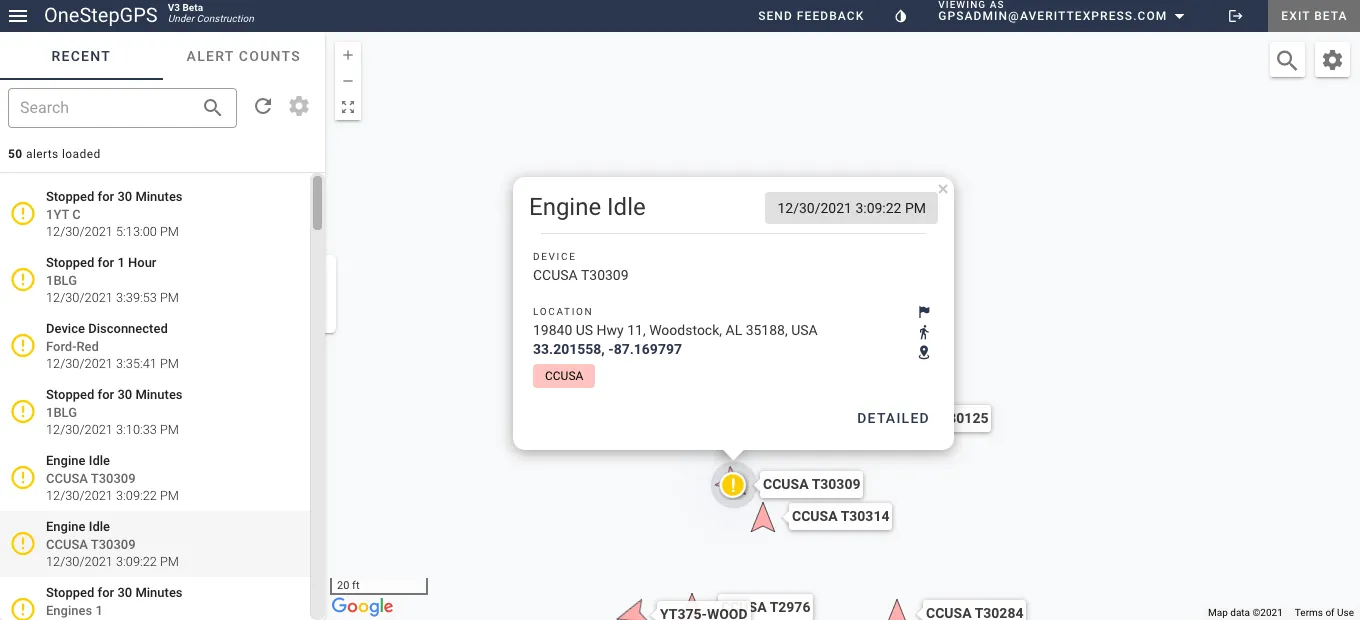

• Excessive idling and prolonged stops

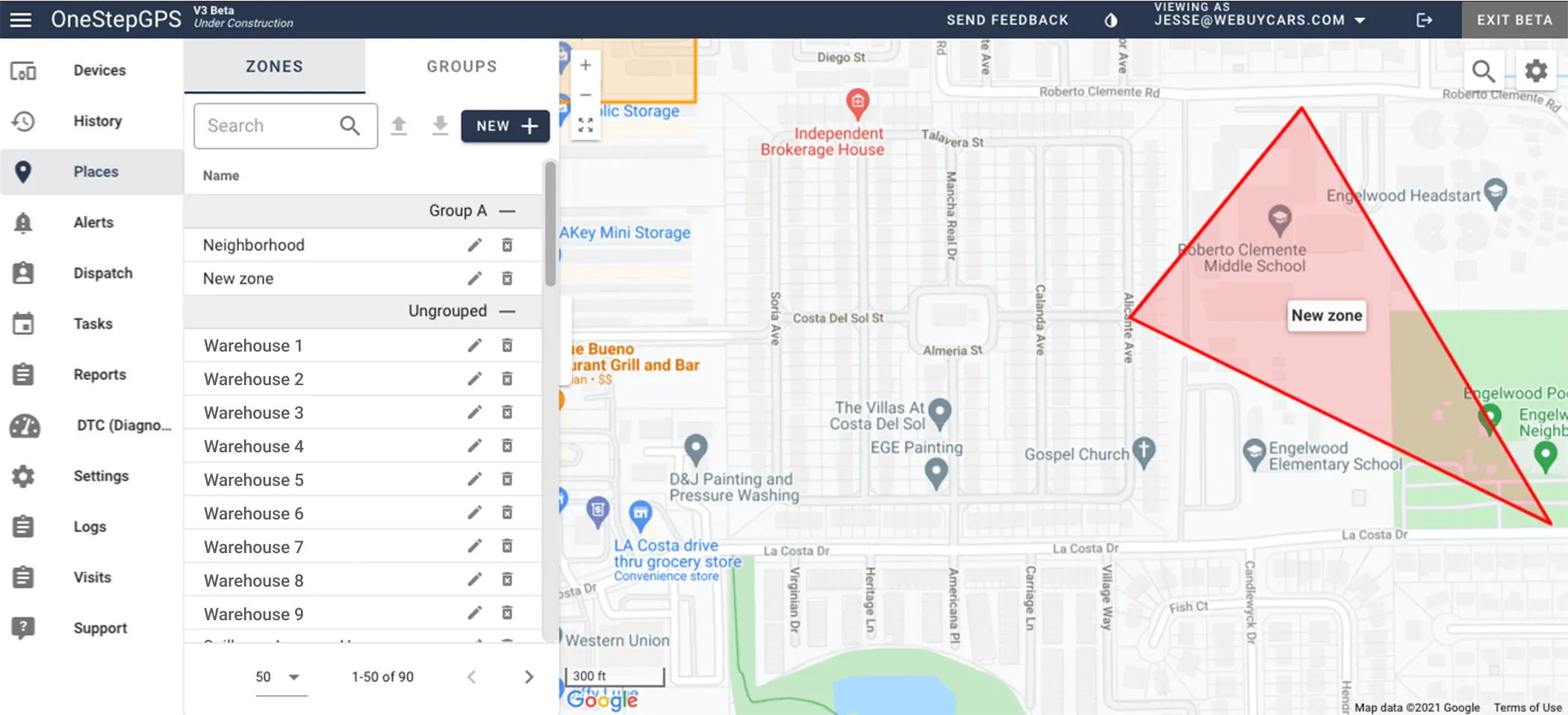

• Geofencing (driving out of specified range)
• After-hours driving
• Device tampering/removal
• Fuel-cost monitoring
• Vehicle service alerts
• Custom reports to meet any need

Our plug-in GPS tracker delivers superior GPS accuracy, ~2.5m CEP Open Sky.

In simple terms this means that, in good weather conditions, your GPS will report vehicles within several feet of their actual physical location. Our GPS fleet trackers deliver superior accuracy so you can make confident decisions based on the data you’re receiving.

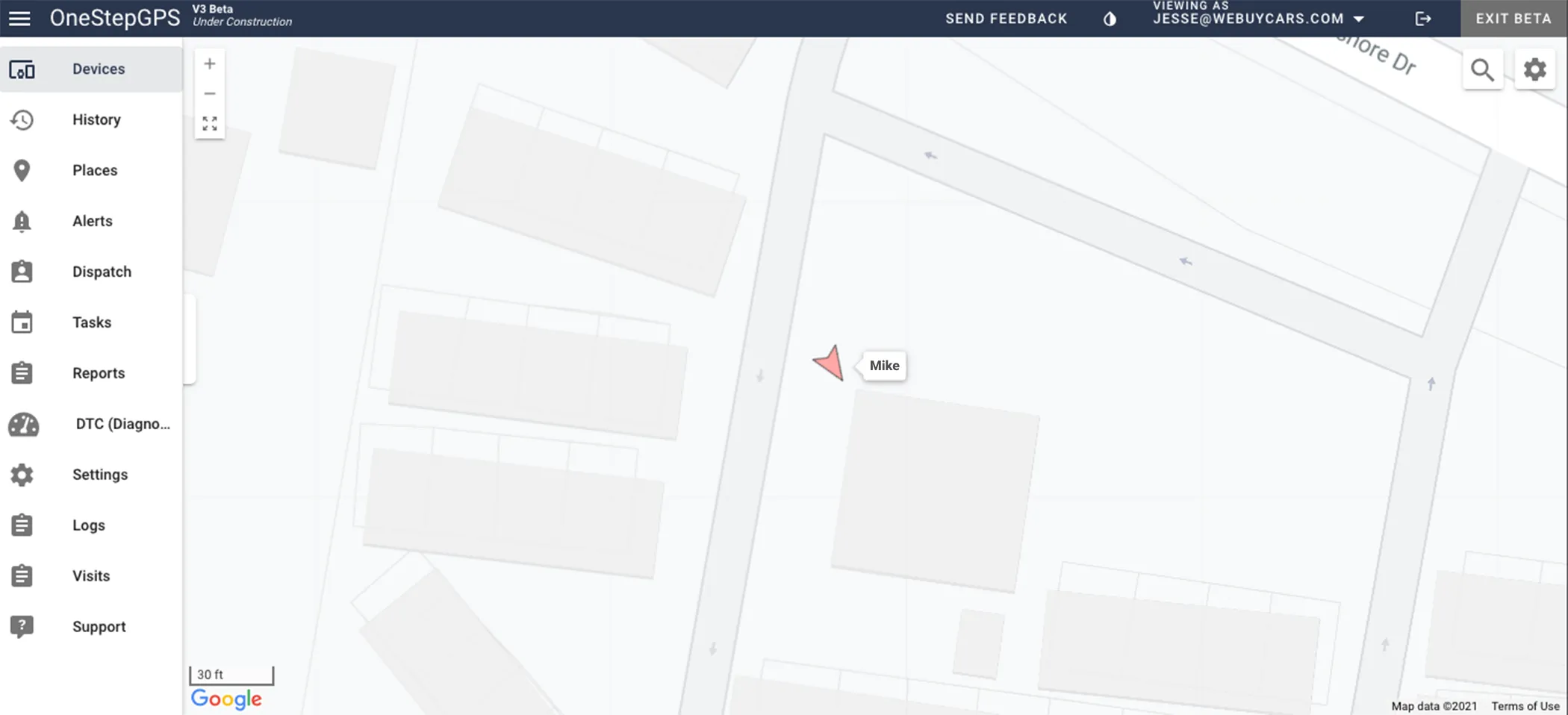

With GPS tracking updates as often as 2-30 seconds, you can now have a complete, real-time view of every vehicle on the road.

Our plug-in GPS tracker captures valuable data that can help manage fleet fuel costs, support fleet maintenance programs and keep your drivers safe:

• VIN
• Vehicle speed
• Odometer
• Fuel level
• Turn signals* (available on select vehicles and models)
• Engine oil temp
• Avg fuel economy
• Transmission fluid temp
• RPMs (High RPM alerts)
• Throttle position
• Engine coolant temp
• Ambient air temp
• DTCs & check engine codes
• Tire pressure* (available on select vehicles and models)
• Seatbelt use* (available on select vehicles and models)
• DEF levels
• Soot levels*

*Not all of the above are available on all vehicles
